New listings KS-7800 selection of high-end digital reverb delay for dedicated LSI chip, the choice of the op amp Huang for mic preamp, so reverb sound forceful, clear and smooth. In addition, the use of the microphone signal harmonic excitation circuit, can significantly change the voice in the frequency domain, people's voice becomes more perfect.

        Perfect protection measures: a precision DC protection measures, when the output of the DC component of a larger, the circuit will automatically cut off to protect the speaker system. Meanwhile, the machine also has a delayed start, overcurrent protection, short circuit protection, clipping indication indication protection circuit.

        Professional design and meticulous, orderly rational layout, using high-quality toroidal transformer leakage magnetic interference, and four high-capacity filter capacitors, to ensure a strong and constant output power under the premise that sound, sound is able to accurately restore the zoom.

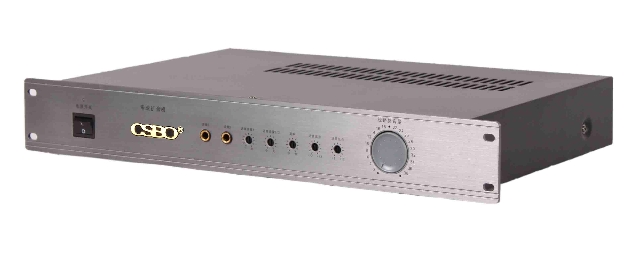

KS-7800 Multimedia Amplifier

★ We have two sets of output interface, can connect two 8Ω speakers;

★ four audio inputs, one audio output;

★ three-way microphone jacks (front two latter);

★ dual-channel high-fidelity full-separated parts, full-band power amplifier system;

★ can achieve speaker volume, treble and bass controls and independently adjustable reverb, line volume and bass and treble can be adjusted independently;

★ can effectively suppress acoustic feedback, to overcome the "whistle"

★ rackmount chassis;

★ full Chinese menu interface, easy to domestic users;

★ can be widely used in multimedia classrooms, small meeting rooms and other places of the PA.

Rated power: 2 × 50 ~ 200W/8Ω;

Nominal output level: Line 0.775V;

Distortion ≤ 0.5%;

SNR: ≥ 80dB (A-weighted);

Main fuse: 4A;

Power: AC 220V ± 10% / 50Hz;

Material and surface treatment: aluminum sandblasted;

Dimensions: 480 × 390 × 130 mm;

Weight: 8.5kg
