CA series is designed to satisfy different kinds of application requirements, such as entertainment sound system, cinema sound system, professional sound reinforcement system, and commercial performance etc. The compact structure design, simple and efficient amplifying circuit, and upgraded cooling system, provide CA series’ excellent performance. Over 10 years, CSBO were concentrating on amplifiers’ research & development, CA series can definitely meet your satisfaction!

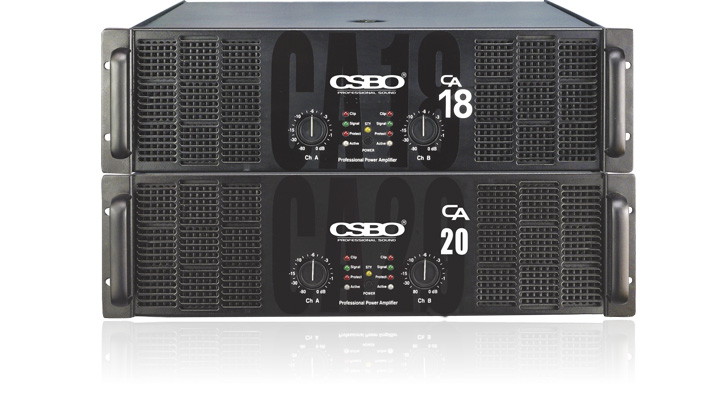

• CA-18 2-channel 800W Power Amplifier

  Continuous Power (8Ω):	800W*2 Ch
  Continuous Power (4Ω):	1200W*2 CH
  Pulsed Power (2Ω):	-
  Bridging Power (8Ω):	2400W
  SNR:	>95dB
  Input Sensitivity:	0.775V/1.0/1.4
  Circuitry Type:	Type AB
  Harmonic Distortion:	<0.05% @ 8Ω 1kHz
  Damping Factor:	>350
  Conversion Rate:	30V/us
  Input Impedance:	20KΩ – balanced input / 10KΩ – unbalanced
  Dimension (W*D*H):	483*462*133 mm (3U)
  Net Weight/Gross Weight:	44kg/27kg

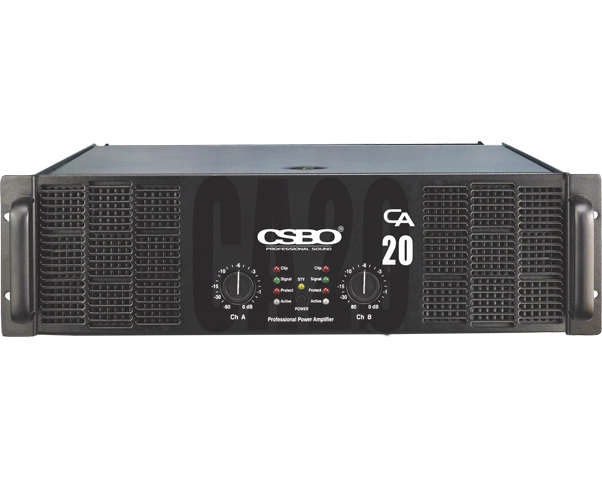

• CA-20 2-channel 1000W Power Amplifier

  Continuous Power (8Ω):	1200W*2 Ch
  Continuous Power (4Ω):	1800W*2 CH
  Pulsed Power (2Ω):	-
  Bridging Power (8Ω):	3600W
  SNR:	>95dB
  Input Sensitivity:	0.775V/1.0/1.4
  Circuitry Type:	Type AB
  Harmonic Distortion:	<0.05% @ 8Ω 1kHz
  Damping Factor:	>350
  Conversion Rate:	30V/us
  Input Impedance:	20KΩ – balanced input / 10KΩ – unbalanced
  Dimension (W*D*H):	483*462*133 mm (3U)
  Net Weight/Gross Weight:	44kg/27kg
