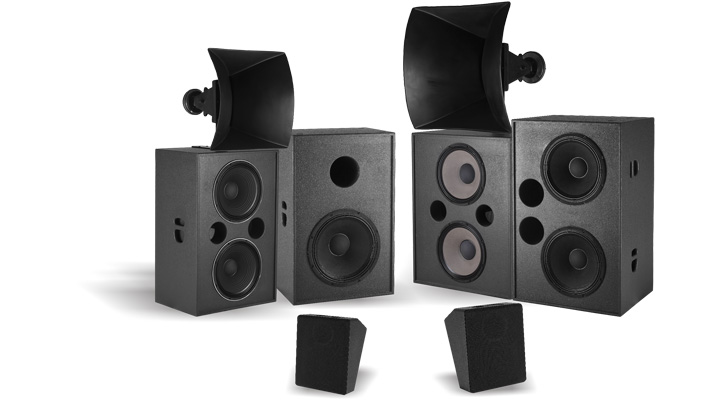

The new released DY series cinema speaker has excellent audio performance and outstanding design. DY series provides extensive coverage and smooth high-frequency response. Use different DY series speakers, a multidimensional ambience can be created. Make the audience feel as if they were in the movie. Finest panel case provides scalable low-frequency response. The choice of crossover frequency makes it to provide wider coverage in the whole frequency range. High-output driver and horn makes every seat in the cinema can hear the sound very clearly. Lasong Audio offers six cinema loudspeaker systems to meet the needs of any cinema application; from the smallest rooms to the most exotic custom installations.
-
DY 08R Cinema Speaker
System Type:
8” Cinema Surround Speaker
Frequency Response:
48Hz – 20k Hz
Impedance:
8Ω
Power Rating (Program ):
100W
Sensitivity:
96dB
Maximum Peak SP:
113dB
Angle of Coverage (horizontal * vertical):
100°* 80°
Crossover Frequency:
3.5khz
System Components:
8” * 1 + 1.35” * 1
Dimensions (H*W*D):
385*217*340 mm
Net Weight:
8.5kg
-
DY 10R Cinema Speaker
System Type:
10” Cinema Surround Speaker
Frequency Response:
40Hz – 18k Hz
Impedance:
8Ω
Power Rating (Program ):
250W
Sensitivity:
96dB
Maximum Peak SP:
124dB
Angle of Coverage (horizontal * vertical):
100°* 80°
Crossover Frequency:
2.5khz
System Components:
10” * 1 + 1.75” * 1
Dimensions (H*W*D):
475*274*455 mm
Net Weight:
15kg
-
DY 215AW Cinema speaker
System Type:
Internal 2-way Cinema Speaker
Frequency Response:
35Hz – 20k Hz
Impedance:
4Ω/8Ω (4Ω)
Power Rating (Program ):
700W
Sensitivity:
103dB/112dB (103dB)
Maximum Peak SP:
136dB/137dB
Angle of Coverage (horizontal * vertical):
80°* 40°
Crossover Frequency:
500hz
System Components:
15” * 2 + 3” * 1
Dimensions (H*W*D):
1280*700*3450 mm
Net Weight:
73kg
-
DY 215SW Cinema speaker
System Type:
External 2-way Cinema Speaker
Frequency Response:
35Hz – 20k Hz
Impedance:
4Ω/8Ω
Power Rating (Program ):
1000W/100W
Sensitivity:
103dB/112dB
Maximum Peak SP:
136dB/138dB
Angle of Coverage (horizontal * vertical):
90°* 40°
Crossover Frequency:
500hz
System Components:
15” * 2 + 4” * 1
Dimensions (H*W*D):
1674*764*812 mm
Net Weight:
95kg
-
DY 118B Cinema subwoofer
System Type:
18” Cinema Subwoofer
Frequency Response:
28Hz – 500Hz
Impedance:
8Ω
Power Rating (Program ):
800W
Sensitivity:
97dB
Maximum Peak SP:
132dB
Angle of Coverage (horizontal * vertical):
-
Crossover Frequency:
80-150Hz
System Components:
18” * 1
Dimensions (H*W*D):
980*640*450 mm
Net Weight:
50kg
-
DY 218B Cinema subwoofer
System Type:
2*18” Cinema Subwoofer
Frequency Response:
26Hz – 500Hz
Impedance:
4Ω
Power Rating (Program ):
1600W
Sensitivity:
102dB
Maximum Peak SP:
140dB
Angle of Coverage (horizontal * vertical):
-
Crossover Frequency:
80-100Hz
System Components:
18” * 2
Dimensions (H*W*D):
1200*760*600 mm
Net Weight:
98kg
 |
