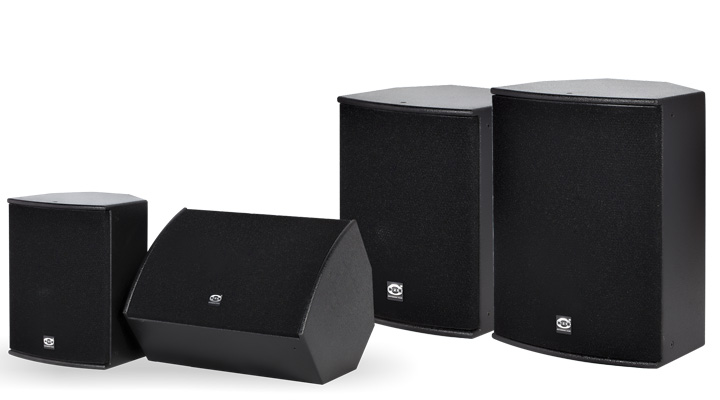

- V series Coaxial
V series coaxial speaker is CSBO’s new product, by providing complete sound reinforcement technology to satisfy consumers’ demands. Coaxial speaker is the latest product, which is designed by the sophisticated acoustical engineers. Easy installation, high exactness, safety, V series is fully comply with nowadays’ consumers’ satisfactions.
|
Features:
-Ideal audio monitor.
-Flexible
-Multi-uses
|
Applications:
-Semi reverberation places
-Stage
|
-
V-8 Professional 8 "coaxial speakers
System Type:
8” Coaxial Speaker
Frequency Response:
35Hz – 19k Hz
Woofer:
8” woofer
Tweeter:
1.45” compression driver
Power Rating (Program / Peak):
100W / 200W
Sensitivity:
92dB
Average SP:
113dB
Peak SP:
119dB
Impedance:
8 ohms
Dimensions (W*D*H):
280*275*389 mm
Net Weight:
12kg
Input Connector:
2 + / 2 – IN 1 + / 1 - THRU
Case:
Advanced Splint
Colour:
Black
-
V-10 Professional 10 "coaxial speakers
System Type:
10” Coaxial Speaker
Frequency Response:
40Hz – 19k Hz
Woofer:
10” woofer
Tweeter:
1.45” compression driver
Power Rating (Program / Peak):
150W / 300W
Sensitivity:
95dB
Average SP:
117dB
Peak SP:
123dB
Impedance:
8 ohms
Dimensions (W*D*H):
308*310*402 mm
Net Weight:
18kg
Input Connector:
2 + / 2 – IN 1 + / 1 - THRU
Case:
Advanced Splint
Colour:
Black
-
V-12 Professional 12 "Coaxial Speaker
System Type:
12” Coaxial Speaker
Frequency Response:
42Hz – 19k Hz
Woofer:
10” woofer
Tweeter:
1.45” compression driver
Power Rating (Program / Peak):
200W / 400W
Sensitivity:
97dB
Average SP:
122dB
Peak SP:
128dB
Impedance:
8 ohms
Dimensions (W*D*H):
370*375*485 mm
Net Weight:
21kg
Input Connector:
2 + / 2 – IN 1 + / 1 - THRU
Case:
Advanced Splint
Colour:
Black
-
V-15 Professional 15 "Coaxial Speaker
System Type:
15” Coaxial Speaker
Frequency Response:
35Hz – 18k Hz
Woofer:
15” woofer
Tweeter:
3” compression driver
Power Rating (Program / Peak):
300W / 600W
Sensitivity:
100dB
Average SP:
125dB
Peak SP:
131dB
Impedance:
8 ohms
Dimensions (W*D*H):
450*420*590 mm
Net Weight:
30kg
Input Connector:
2 + / 2 – IN 1 + / 1 - THRU
Case:
Advanced Splint
Colour:
Black
 |
