- JP series speaker

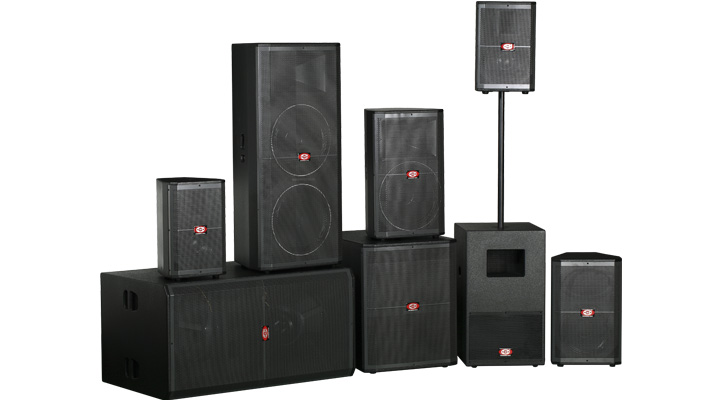

The JP Series represents an evolutionary step in the efficient use of amplifier power, delicate cases and high-performance sound reinforcement in a loudspeaker. There are eight kinds of products in the JP series to fit in different size of places. Full-range JP series speaker is not only a Main PA, it can also be a stage monitor, or be used as a complement speaker. Versatile, scalable, easy-to-transport and set up, the JP Series use CSBO's tour tested technology throughout for a lifetime of reliable performance you can trust.
|
Features: |
Applications: |
-
JP-102 10 "full-range professional speaker
System type:
Two-way full-range speakers (10”)
Frequency response:
48Hz-18k HZ
Woofer:
10” woofer
Tweeter:
1.45” compression driver
Power Rating (Program/Peak):
200W/400W
Sensitivity:
92dB
Average SP:
110dB
Peak SP:
116dB
Impedance:
8 ohms
Dimension (W*D*H):
328*330*501 mm
Net weight:
18kg
Input connectors:
Four-core socket
Case:
Advanced splint
Colour:
Black
-
JP-122 12 "full-range professional speaker
System type:
Two-way full-range speakers (12”)
Frequency response:
45Hz-18k HZ
Woofer:
12” woofer
Tweeter:
1.45” compression driver
Power Rating (Program/Peak):
250W/500W
Sensitivity:
93dB
Average SP:
110dB
Peak SP:
116dB
Impedance:
8 ohms
Dimension (W*D*H):
394*395*601 mm
Net weight:
22kg
Input connectors:
2+ / 2 – IN 1+ / 1- THRU
Case:
Advanced splint
Colour:
Black
-
JP-152 15 "full-range professional speaker
System type:
Two-way full-range speakers (15”)
Frequency response:
45Hz-20k HZ
Woofer:
15” woofer
Tweeter:
1.75” compression driver
Power Rating (Program/Peak):
300W/600W
Sensitivity:
97dB
Average SP:
122dB
Peak SP:
128dB
Impedance:
8 ohms
Dimension (W*D*H):
432*406*712 mm
Net weight:
25kg
Input connectors:
2+ / 2 – IN 1+ / 1- THRU
Case:
Advanced splint
Colour:
Black
-
JP-123 Dual 12 "full-range professional speaker
System type:
Two-way full-range speakers (12”)
Frequency response:
48Hz-20k HZ
Woofer:
12” woofer*2
Tweeter:
1.75” compression driver
Power Rating (Program/Peak):
500W/1000W
Sensitivity:
96dB
Average SP:
122dB
Peak SP:
128dB
Impedance:
4 ohms
Dimension (W*D*H):
395*395*970 mm
Net weight:
32kg
Input connectors:
2+ / 2 – IN 1+ / 1- THRU
Case:
Advanced splint
Colour:
Black
-
JP-153 Dual 15 "full-range professional speaker
System type:
Two-way full-range speakers (15”)
Frequency response:
50Hz-20k HZ
Woofer:
15” woofer*2
Tweeter:
1.75” compression driver
Power Rating (Program/Peak):
700W/1400W
Sensitivity:
97dB
Average SP:
125dB
Peak SP:
131dB
Impedance:
4 ohms
Dimension (W*D*H):
540*510*1218 mm
Net weight:
53kg
Input connectors:
2+ / 2 – IN 1+ / 1- THRU
Case:
Advanced splint
Colour:
Black
-
JP-151 15 "Subwoofer
System type:
15” subwoofer
Frequency response:
45Hz-200HZ
Woofer:
15” woofer
Tweeter:
-
Power Rating (Program/Peak):
350W/700W
Sensitivity:
95dB
Average SP:
120dB
Peak SP:
126dB
Impedance:
8 ohms
Dimension (W*D*H):
580*450*760 mm
Net weight:
58kg
Input connectors:
2+ / 2 – IN 1+ / 1- THRU
Case:
Advanced splint
Colour:
Black
-
JP-181 18 "Subwoofer
System type:
18” subwoofer
Frequency response:
35Hz-200 HZ
Woofer:
18” woofer
Tweeter:
-
Power Rating (Program/Peak):
400W/800W
Sensitivity:
96dB
Average SP:
122dB
Peak SP:
128dB
Impedance:
8 ohms
Dimension (W*D*H):
575*768*714 mm
Net weight:
62kg
Input connectors:
2+ / 2 – IN 1+ / 1- THRU
Case:
Advanced splint
Colour:
Black
-
JP-182 dual 18 "subwoofer
System type:
Double 18” subwoofer
Frequency response:
35Hz-200HZ
Woofer:
18” woofer*2
Power Rating (Program/Peak):
800W/1600W
Sensitivity:
99dB
Average SP:
127dB
Peak SP:
133dB
Impedance:
4 ohms
Dimension (W*D*H):
600*730*1180 mm
Net weight:
89kg
Input connectors:
2+ / 2 – IN 1+ / 1- THRU
Case:
Advanced splint
Colour:
Black
 |
