- F series speker
F series are high quality passive speakers. They include CSBO’s excellent audio quality and durable case which meet the standard of international amplification system. F series mainly aim to the Chinese market, can be used in multi-function meeting room, KTV, bar, etc. They can provide amazing performance experience to customers.
For easily to hang up the cases, we use eyebolts, which can adjust the hanging angles flexibly. Each cases has 12 hanging points, each hanging points can support 100kg, therefore our hanging system is absolutely safe and reliable.

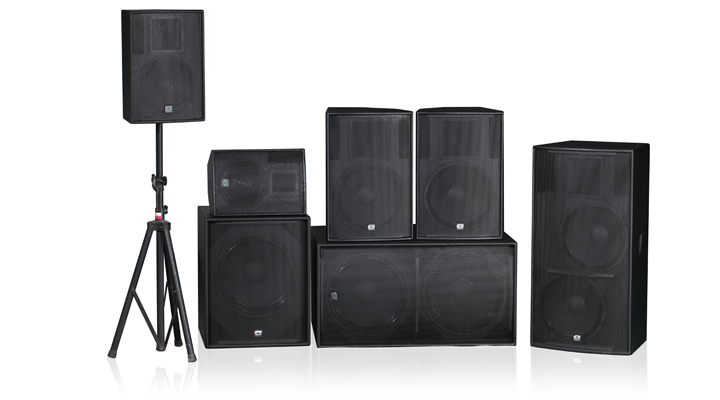

The F series is available in 10”, 12”, 15”, and double 15”, suggested to be used with subwoofers, the size of the subwoofers is: 15”, 18”,and double 18”.
Use the full-range speakers with the subwoofers can make the sound effect even better!
|
Features: -Durable cases -Easily to hang up -Flexible rotating |
Applications: -Multi-function meeting room -KTV -Bar |
-
F-10 10 "full-range professional speaker
System type:
Two-way full-range speakers (10”)
Frequency response:
45Hz-18k HZ
Woofer:
10” woofer
Tweeter:
1.45” compression driver
Power Rating (Program/Peak):
200W/400W
Sensitivity:
96dB
Average SP:
119dB
Peak SP:
125dB
Impedance:
8 ohms
Dimension (W*D*H):
355*319*497 mm
Net weight:
17kg
Input connectors:
2+/2 - IN 1+/1 – THRU
Case:
Advanced splint
Colour:
Black
-
F-12 12 "full-range professional speaker
System type:
Two-way full-range speakers (12”)
Frequency response:
45Hz-18k HZ
Woofer:
12” woofer
Tweeter:
1.75” compression driver
Power Rating (Program/Peak):
250W/500W
Sensitivity:
97dB
Average SP:
121dB
Peak SP:
127dB
Impedance:
8 ohms
Dimension (W*D*H):
395*360*568 mm
Net weight:
21kg
Input connectors:
2+/2 - IN 1+/1 – THRU
Case:
Advanced splint
Colour:
Black
-
F-15 15 "full-range professional speaker
System type:
Two-way full-range speakers (15”)
Frequency response:
35Hz-19k HZ
Woofer:
15” woofer
Tweeter:
3” compression driver
Power Rating (Program/Peak):
400W/800W
Sensitivity:
99dB
Average SP:
123dB
Peak SP:
129dB
Impedance:
8 ohms
Dimension (W*D*H):
473*444*691 mm
Net weight:
33kg
Input connectors:
2+/2 - IN 1+/1 – THRU
Case:
Advanced splint
Colour:
Black
-

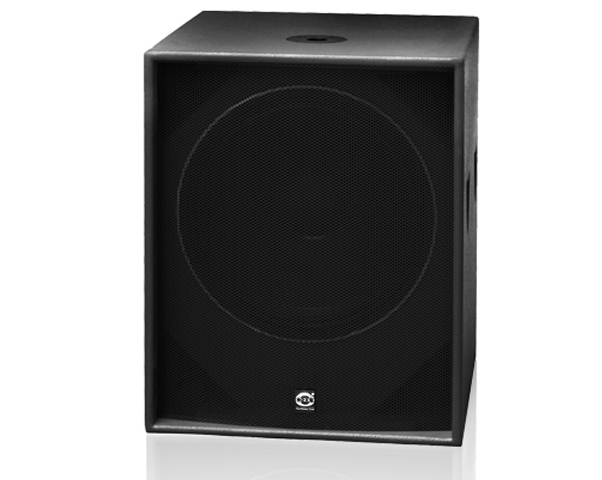

S-118 18 "Subwoofer
System type:
18” subwoofer
Frequency response:
45Hz-200HZ
Woofer:
18” woofer
Tweeter:
-
Power Rating (Program/Peak):
500W/1000W
Sensitivity:
97dB
Average SP:
121dB
Peak SP:
127dB
Impedance:
8 ohms
Dimension (W*D*H):
560*595*691 mm
Net weight:
45kg
Input connectors:
2+/2 - IN 1+/1 – THRU
Case:
Advanced splint
Colour:
Black
-

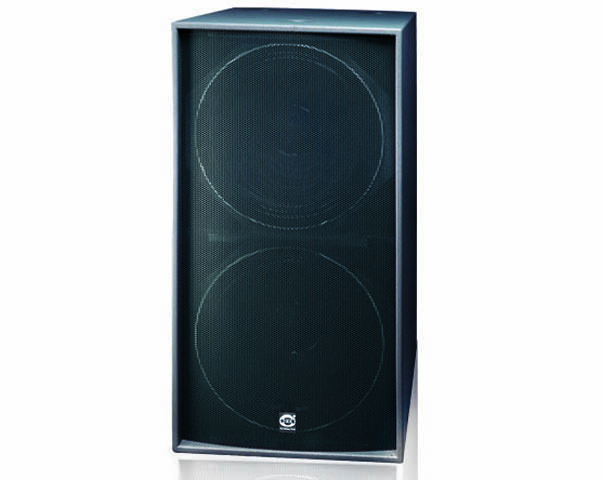

S-218 Dual 18 "Subwoofer
System type:
Double 18” subwoofer
Frequency response:
35Hz-200HZ
Woofer:
18” woofer*2
Tweeter:
-
Power Rating (Program/Peak):
1000W/2000W
Sensitivity:
102dB
Average SP:
130dB
Peak SP:
136dB
Impedance:
4 ohms
Dimension (W*D*H):
561*781*1066 mm
Net weight:
87kg
Input connectors:
2+/2 - IN 1+/1 – THRU
Case:
Advanced splint
Colour:
Black
 |
