- AS series amplifier
AS series is designed to apply in KTV, meeting room, etc. And because most of the KTV rooms only have very small cabinets, therefore the AS series has a compact structure. Simple and efficient amplifying circuit, upgraded cooling system, provide CA series’ excellent performance. We have a rigorous system to control the quality, AS series is the one you can rely on!
|
Features:
-Easy installation
-Perfect protection design
-Easy mobility
|
Applications:
-KTV
-Meeting rooms
|
-

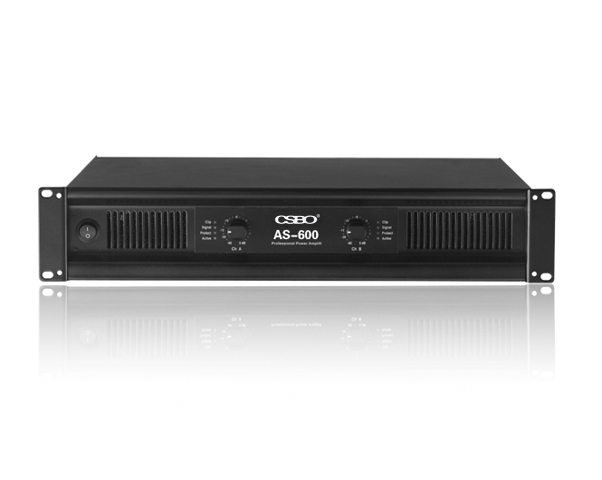

AS-600 2-channel 200W Power Amplifier
Continuous Power (8Ω):
200W*2 Ch
Continuous Power (4Ω):
300W*2 CH
Pulsed Power (2Ω):
-
Bridging Power (8Ω):
400W
SNR:
>90dB
Input Sensitivity:
1.2V
Circuitry Type:
Type AB
Harmonic Distortion:
<0.1%
Damping Factor:
>400
Conversion Rate:
30V/us
Input Impedance:
20KΩ – balanced input / 10KΩ – unbalanced
Dimension (W*D*H):
640*585*220 mm
Net Weight:
23kg
-

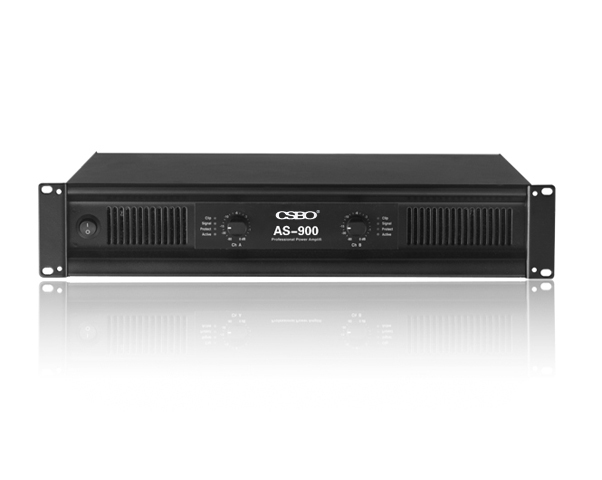

AS-900 2-channel 300W Power Amplifier
Continuous Power (8Ω):
300W*2 CH
Continuous Power (4Ω):
450W*2 CH
Pulsed Power (2Ω):
-
Bridging Power (8Ω):
600W
SNR:
>90dB
Input Sensitivity:
1.2V
Circuitry Type:
Type AB
Harmonic Distortion:
<0.1%
Damping Factor:
>400
Conversion Rate:
30V/us
Input Impedance:
20KΩ – balanced input / 10KΩ – unbalanced
Dimension (W*D*H):
640*585*220 mm
Net Weight:
25kg
-

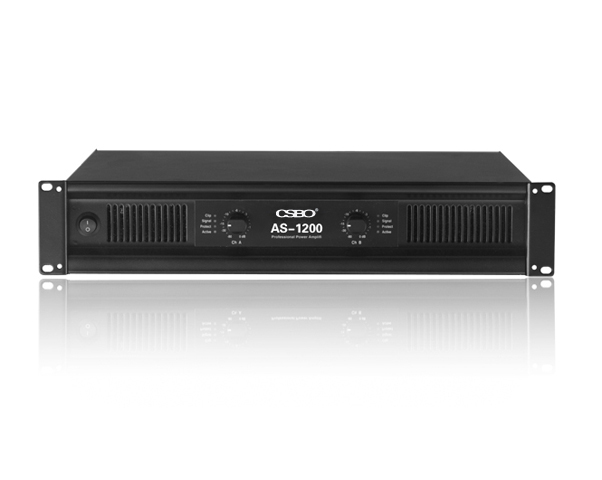

AS-1200 2-channel 400W Power Amplifier
Continuous Power (8Ω):
400W*2 CH
Continuous Power (4Ω):
600W*2 CH
Pulsed Power (2Ω):
-
Bridging Power (8Ω):
800W
SNR:
>90dB
Input Sensitivity:
1.2V
Circuitry Type:
Type H
Harmonic Distortion:
<0.1%
Damping Factor:
>400 B
Conversion Rate:
30V/us
Input Impedance:
20KΩ – balanced input / 10KΩ – unbalanced
Dimension (W*D*H):
640*585*220 mm
Net Weight:
27kg
 |
