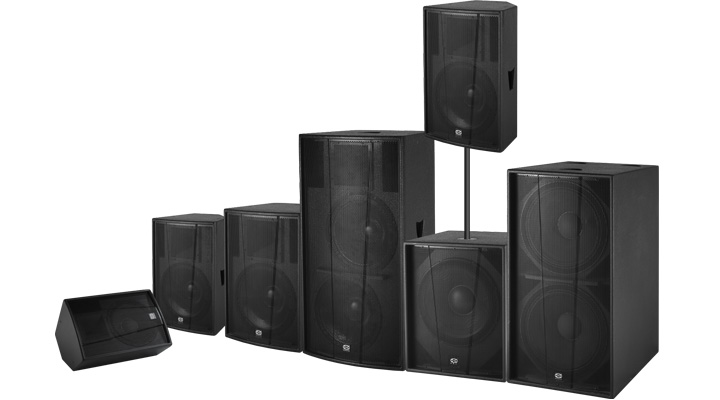

F+ series are high quality passive speakers. They include CSBO’s excellent audio quality and durable case which meet the standard of international amplification system.  F+ series mainly aim to the Chinese market, can be used in multi-function meeting room, KTV, bar, etc. They can provide amazing performance experience to customers.
For easily to hang up the cases, we use eyebolts, which can adjust the hanging angles flexibly. Each cases has 12 hanging points, each hanging points can support 100kg, therefore our hanging system is absolutely safe and reliable.
The F+ series is available in 10”, 12”, 15”, and double 15”, suggested to be used with subwoofers, the size of the subwoofers is: 18” and double 18”.
Use the full-range speakers with the subwoofers can make the sound effect even better!

Features:
-Durable cases
-Easily to hang up
-Flexible rotating
Applications:
-Multi-function meeting room
-KTV
-Bar

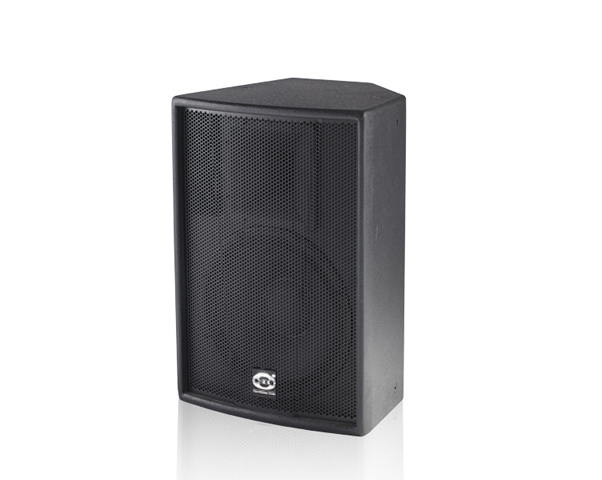

  • F-10 + 10 "full-range professional speaker

    System type:

    Two-way full-range speakers (12”)

    Frequency response:

    45Hz-18k HZ

    Woofer:

    12” woofer

    Tweeter:

    1.75” compression driver

    Power Rating (Program/Peak):

    300W/600W

    Sensitivity:

    97dB

    Average SP:

    121dB

    Peak SP:

    125dB

    Impedance:

    8 ohms

    Dimension (W*D*H):

    395*360*568 mm

    Net weight:

    22kg

    Input connectors:

    2+/2 - IN   1+/1 – THRU

    Case:

    Advanced splint

    Colour:

    Black

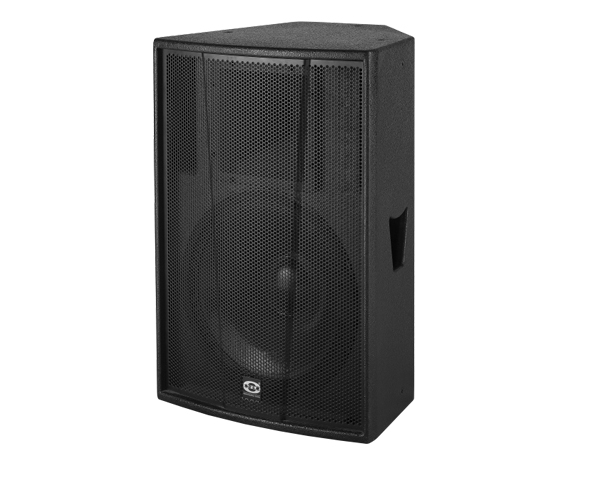

  • F-12 + 12 "full-range professional speaker

    System type:

    Two-way full-range speakers (12”)

    Frequency response:

    45Hz-18k HZ

    Woofer:

    12” woofer

    Tweeter:

    1.75” compression driver

    Power Rating (Program/Peak):

    300W/600W

    Sensitivity:

    97dB

    Average SP:

    121dB

    Peak SP:

    125dB

    Impedance:

    8 ohms

    Dimension (W*D*H):

    395*360*568 mm

    Net weight:

    22kg

    Input connectors:

    2+/2 - IN   1+/1 – THRU

    Case:

    Advanced splint

    Colour:

    Black

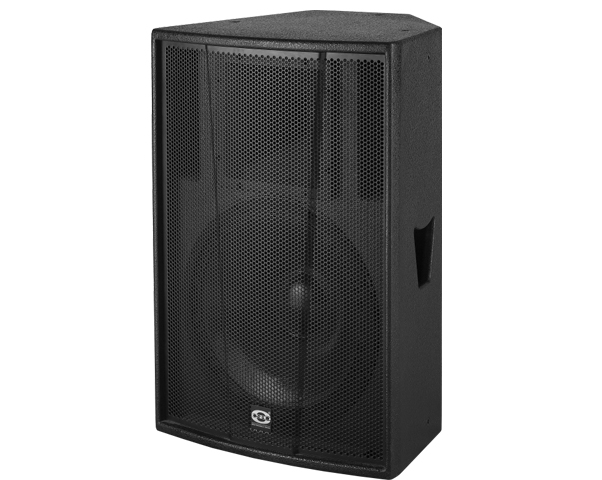

  • F-15 + 15 "full-range professional speaker

    System type:

    Two-way full-range speakers (15”)

    Frequency response:

    40Hz-18k HZ

    Woofer:

    15” woofer

    Tweeter:

    3” compression driver

    Power Rating (Program/Peak):

    350W/700W

    Sensitivity:

    98dB

    Average SP:

    123dB

    Peak SP:

    129dB

    Impedance:

    8 ohms

    Dimension (W*D*H):

    473*444*691 mm

    Net weight:

    31kg

    Input connectors:

    2+/2 - IN   1+/1 – THRU

    Case:

    Advanced splint

    Colour:

    Black

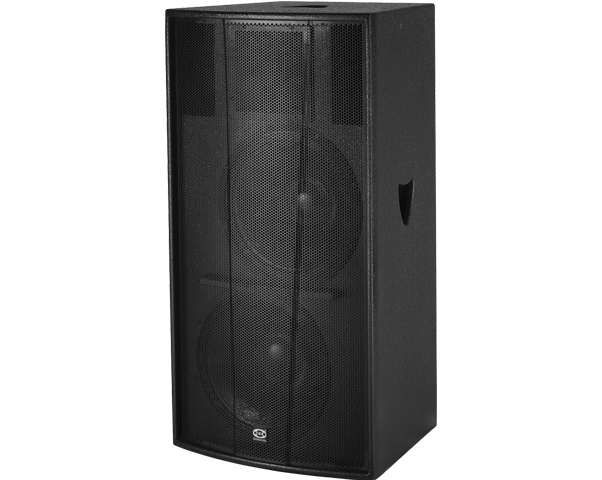

  • F-215 + Dual 15 "full-range professional speaker

    System type:

    Full-range speakers (15”)

    Frequency response:

    35Hz-18k HZ

    Woofer:

    15” woofer*2

    Tweeter:

    3” compression driver

    Power Rating (Program/Peak):

    700W/1400W

    Sensitivity:

    101dB

    Average SP:

    128dB

    Peak SP:

    134dB

    Impedance:

    4 ohms

    Dimension (W*D*H):

    562*496*1069 mm

    Net weight:

    55kg

    Input connectors:

    2+/2 - IN   1+/1 – THRU

    Case:

    Advanced splint

    Colour:

    Black

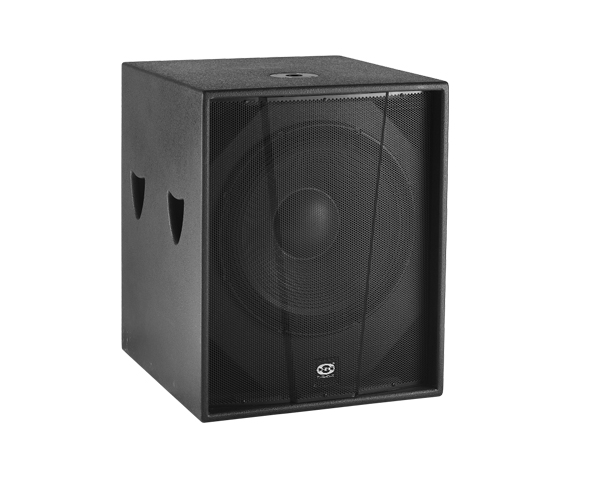

  • S-118+ 18 "Subwoofers

    System type:

    18” subwoofer

    Frequency response:

    35Hz-150HZ

    Woofer:

    18” woofer

    Tweeter:

    -

    Power Rating (Program/Peak):

    500W/1000W

    Sensitivity:

    97dB

    Average SP:

    121dB

    Peak SP:

    127dB

    Impedance:

    8 ohms

    Dimension (W*D*H):

    561*595*691 mm

    Net weight:

    45kg

    Input connectors:

    2+/2 - IN   1+/1 – THRU

    Case:

    Advanced splint

    Colour:

    Black

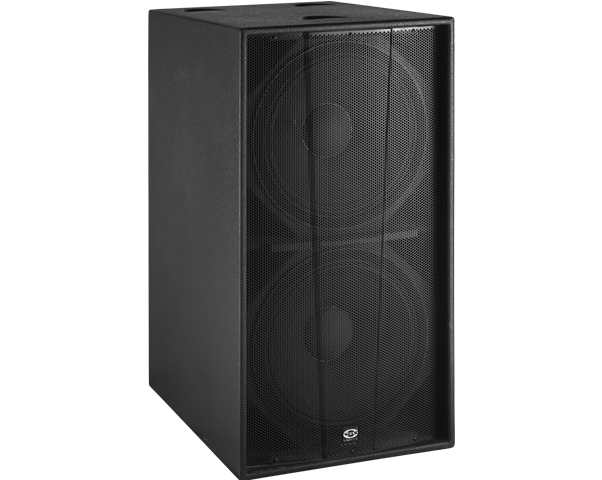

  • S-218 + Dual 18 "Subwoofers

    System type:

    Double 18” subwoofer

    Frequency response:

    35Hz-200HZ

    Woofer:

    18” woofer*2

    Tweeter:

    -

    Power Rating (Program/Peak):

    1000W/2000W

    Sensitivity:

    102dB

    Average SP:

    130dB

    Peak SP:

    136dB

    Impedance:

    4 ohms

    Dimension (W*D*H):

    561*781*1066 mm

    Net weight:

    87kg

    Input connectors:

    2+/2 - IN   1+/1 – THRU

    Case:

    Advanced splint

    Colour:

    Black
