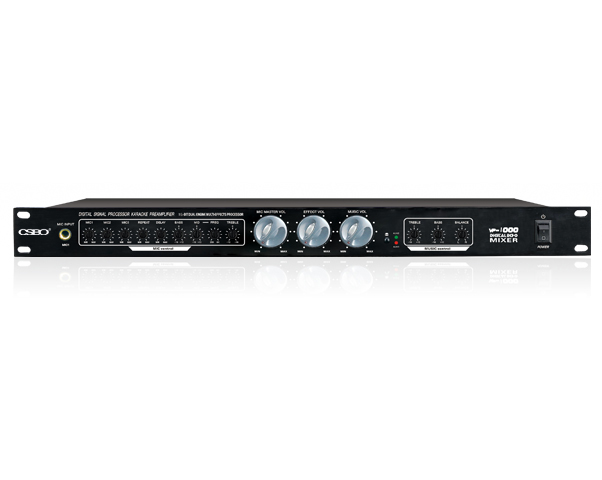

VP-1000 preamp effects
产品型号：VP-1000
查看大图- 产品介绍
- 相关产品
- This is a pure virtual 5.1 channel analog preamp effects, voice low high school has done more balanced overall, the effect came out clear and soft, MICROPHONE this one we divided the segment to adjust, which is currently before the simulation grade rare, strong regulatory function, enabling customers to adjust according to the different preferences of different styles, reverb delay this, we are of left and right channels separately adjustable according to customer's different preferences, create a stereo effect. Mark the center of the microphone and music volume can be adjusted independently, dual reverb, with the targeted development of audio chips, resistors rings precision resistors.
• Microphone equalizer seven sections, making tuning more detailed professional.• using the classic Twin Reverb analog circuit technology, so singing easier.• Multi-channel MICROPHONE and music can be adjusted independently, have low crossover (20HZ - 250HZ) is adjustable.• left and right channels individually adjustable reverb delay function.• The Center Output modes: microphone or mic + music.• appearance of new, three-dimensional exceptionally strong.
Model
VP-1000
SNR SNR / left channel (1KHz, 0dB):
90dB
Left and right surround channels :
90dB
Center channel :
87dB
Low channel :
87dB
Separation :
75dB
Frequency Response / Music :
10--30KHz
Microphone :
20--15KHz
Sound adjustment range / Music Bass :
+/-10dB(100Hz)
Music high:
+/-10dB(10KHz)
Microphone Bass :
+/-10dB(100Hz)
Microphone high:
+/-5dB(10KHz)
Distortion(1KHz,30MV):
0.03%
Dimensions(W×D×H):
520×220×70mm
Power supply voltage :
AC220V-240V/50-60Hz
Weight:
3kg
 |
