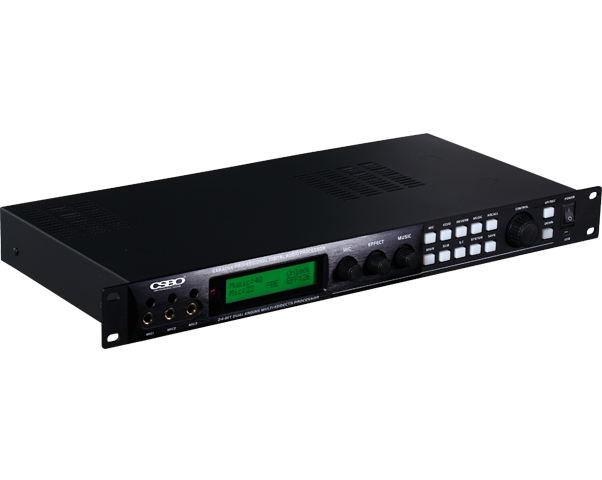

X5 effector has been used widely in different kinds of high-class entertainment places and its high quality has been approved. CSBO has set up the standard of effector; this standard is known by many dynamic range and powerful DSP processor. Got it, and enjoy your singing in KTV!

Music:

1. Music parametric equalizer: 7-band

2. Music to main output high-pass filter: 12dB/24dB (0Hz-303Hz)

MIC:

1. 4 MIC FBE modes: OFF 1 2 3

2. MIC limiter function

3. 15-band MIC parametric equalizer

Effects:

Echo:

1. Echo low-pass filter: 5.99Hz – 20.6KHz

2. Echo high-pass filter: 0Hz – 1000Hz

3. Echo parametric equalizer: 3-band

4. Echo level: 0-100%

5. Echo direct sound level: 0-100%

6. Echo pre-delay: 0-500ms

7. Echo Right pre-delay: 0 - ± 50%

8. Echo total pre-delay: 0 ~ 500ms

9. Echo Right delay: 0 – 50%

10. Echo repeating: 0 ~ 90%

Reverb:

1. Reverb low-pass filter - adjustable range: 5.99Hz – 20.6KHz

2. Reverb high-pass filter - adjustable range: 0Hz – 1000Hz

3. Reverb level - adjustable range: 0 ~ 100%

4. Reverb direct sound level - adjustable range: 0 ~100%

5. Echo pre-delay - adjustable range: 0 ~ 200ms

6. Reverb time - adjustable range: 0 ~ 3000ms

Main Output (Working mode: Singing/dancing (auto/manual), except pressure limiter, delay and mute parametric)

1. Music level: 0 ~ 200%

2. Direct sound level: 0 ~ 200%

3. Echo level: 0 ~ 200%

4. Reverb level: 0 ~ 200%

5. 5-band music parametric equalizer

6. Compressor

7. Left delay: 0 ~ 50ms

8. Right delay: 0 ~ 50ms

9. Left mute function

10. Right mute function

Center Output (Working mode: Singing/dancing (auto/manual), except pressure limiter, delay and mute parametric)

1. Music level: 0 ~ 200%

2. Direct sound level: 0 ~ 200%

3. Echo level: 0 ~ 200%

4. Reverb level: 0 ~ 200%

5. High-pass filter: 0Hz – 303Hz

6. 3-band parametric equalizer

7. Compressor

8. Delay: 0 ~ 50ms

9. Mute function

Subwoofer Output: (Working mode: Singing/dancing (auto/manual), except pressure limiter, delay and mute parametric)

1. Music level: 0 ~ 400%

2. MIC direct sound level: 0 ~ 200%

3. High-pass filter: 12dB, Q 0.4 – 1.5,/Bessel 24dB/Butterworth 24dB/Link Riley 24dB/USER 12dB/USER 24dB (0Hz – 303Hz)

4. Low-pass filter: 12dB, Q 0.4 – 1.5,/Bessel 24dB/Butterworth 24dB/Link Riley 24dB/USER 12dB/USER 24dB (0Hz – 303Hz)

5. 3-band parametric equalizer

6. Compressor

7. Delay: 0 ~ 50ms

8. Mute function

Post-output (Working mode: Singing/dancing (auto/manual), except pressure limiter, delay and mute parametric)

1. Music level: 0 ~ 200%

2. Direct sound level: 0 ~ 200%

3. Echo level: 0 ~ 200%

4. Reverb level: 0 ~ 200%

5. High-pass filter: 0Hz – 303Hz

6. 3-band parametric equalizer

7. Compressor

8. Left delay: 0 ~ 50%

9. Right delay: 0 ~ 50%

10. Mute function

System

1. Two music input port

2. Music input gain: 0dB/3dB/6dB (user mode cannot be adjusted)
